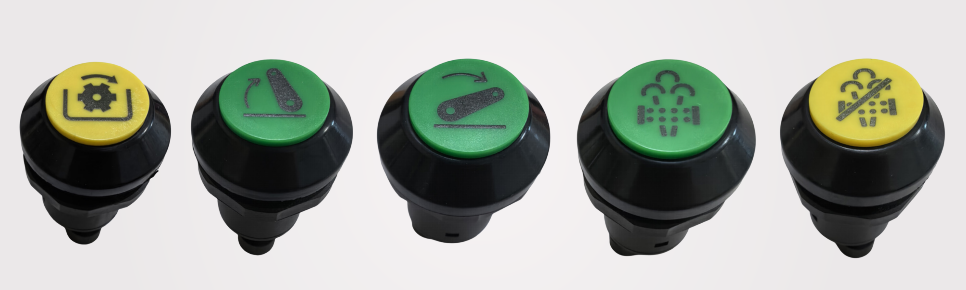

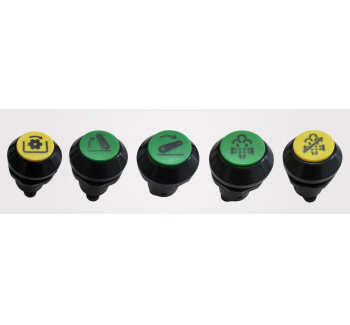

​PTO switch(Push button switch)

PTO switch(Push button switch)

High-power tractor PTO control switch

Application：Tractors and other agricultural machinery equipment

This robust push button with Superseal connector is designed for applications that are exposedto adverseenvironmental conditions. The M30 push button switch is ideally suited for use in theautomotiveengineering sector, for example, for controlling hydraulic functions. The switchingelement, which iscompletely separated from the mechanics, resists dust, dirt and moisture,thanks to its IP67 protection class.

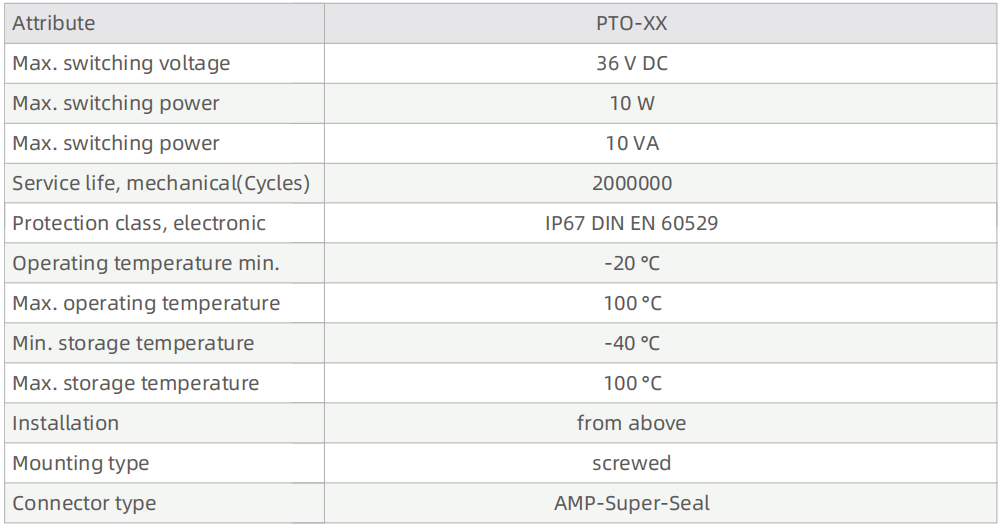

 Technical specifications

● Long service life thanks to the magnetic actuation principle

● Wear-free reed contacts for low switching currents

● Developed for harsh operating conditions with internal electronics sealed to IP67 protection class

● Available with various button colours and symbols to suit the application

● Various connector types available for a wide range of uses

Features：

Service life(mechanical)：2000000

Anti-ultraviolet, suitable for outdoor working environments

Protection class：IP67

Stable and reliable

Article characteristics
